Corrente Soldada Elo Curto
Corrente Soldada Elo Curto - Acro Cabos
Acabamentos: Galvanizado ou Polido

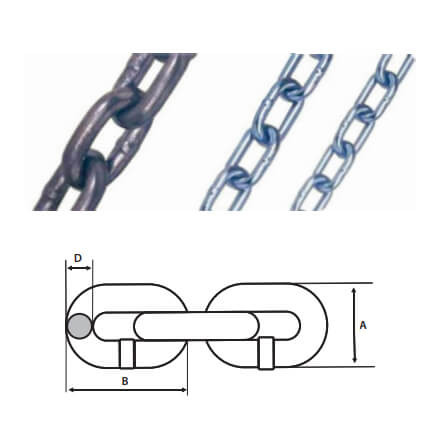

| Diâmetro | Dimensões A x B (mm) |
Peso (kg / m) |
Resistência (kgf) | ||
|---|---|---|---|---|---|
| mm | pol. | Trabalho | Ruptura | ||
| 1,2 | 3/64" | 6 x 10 | 0,028 | 15 | 60 |
| 2,0 | 5/64" | 9 x 16 | 0,068 | 40 | 160 |
| 2,4 | 3/32" | 12 x 19 | 0,110 | 60 | 240 |
| 3,0 | 7/64" | 13 x 22 | 0,170 | 125 | 500 |
| 3,2 | 1/8" | 11 x 24 | 0,157 | 170 | 680 |
| 3,5 | 9/64" | 12 x 25 | 0,219 | 200 | 800 |
| 4,0 | 5/32" | 15 x 27 | 0,298 | 225 | 900 |
| 4,5 | 11/64" | 16 x 31 | 0,368 | 250 | 1.000 |
| 5,0 | 3/16" | 18 x 33 | 0,468 | 350 | 1.400 |
| 5,5 | 7/32" | 20 x 35 | 0,574 | 450 | 1.800 |
| 6,0 | 15/64" | 22 x 40 | 0,670 | 500 | 2.000 |
| 6,5 | 1/4" | 24 x 42 | 0,797 | 550 | 2.200 |
| 7,0 | 9/32" | 27 x 44 | 0,974 | 600 | 2.400 |
| 8,0 | 5/16" | 31 x 49 | 1,279 | 625 | 2.500 |
| 9,0 | 23/64" | 34 x 53 | 1,635 | 700 | 2.800 |
| 9,5 | 3/8" | 35 x 53 | 1,872 | 800 | 3.200 |
| 11,0 | 7/16" | 42 x 63 | 2,548 | 1050 | 4.200 |
| 12,5 | 1/2" | 46 x 72 | 3,168 | 1500 | 6.000 |
| 14,5 | 9/16" | 51 x 79 | 4,371 | 1900 | 7.600 |
| 15,5 | 5/8" | 53 x 82 | 4,932 | 2250 | 9.000 |
| 19,0 | 3/4" | 64 x 104 | 7,487 | 3750 | 15.000 |
| 22,0 | 7/8" | 76 x 134 | 9,4169 | 4825 | 19.300 |
| 25,0 | 1" | 92 x 152,8 | 12,6891 | 6250 | 25.000 |
| 28,5 | 1.1/8" | 102,5 x 171 | 15,9894 | 8000 | 32.000 |
| 32,0 | 1.1/4" | 126 x 174 | 21,7199 | 10.000 | 40.000 |
| 35,0 | 1.3/8" | 128 x 212 | 22,7736 | 12.750 | 51.000 |
| 38,0 | 1.1/2" | 126 x 202 | 28,6999 | 14.000 | 56.000 |
